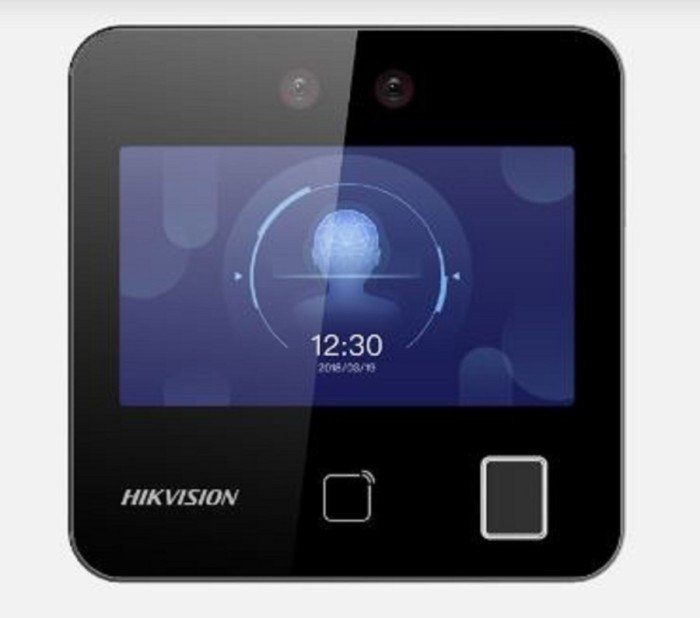

Hikvision DS-K1T343MFX Face Recognition Terminal

The face recognition terminal adopts a deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card/fingerprint authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.

Product Features

• 1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
• Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Megapixel wide-angle lens, Built-in Mifare card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP
• SupportsISAPI,ISUP5.0
• Configuration via the web client
• FaceRecognitionDistance:0.3mto1.5m
• Duration<0.2s/User
• Accuracyrate≥99%

Product Specifications

• Display

• Screen Size4.3 inch
• Operation MethodCapacitive touch screen
• TypeLCD

• Video

• Lens2
• Resolution2 MP

• Audio

• Audio QualityNoise suppression and echo cancellation

• Network

• Wired network support

• Interface

• Network Interface1 RJ-45, 10/100 M self-adaptive
• Lock Control1
• Exit Button1
• Door Contact Input1
• TAMPER1
• RS-4851 RS-485 (Half duplex, HIKVISION)
• Wiegand1 Wiegand(Hik 26bit,Hik 34bit)
• USB1

• Authentication

• Card TypeM1 card
• Card Reading Frequency13.56 MHz

• General

• Power Supply12 VDC, 1 A (power adapter included)
• Working Temperature-10 °C to 40 °C (14 °F to 104 °F)
• Working Humidity0 to 90% (No condensing)
• Dimensions118.4 mm × 118.4 mm × 21.8 mm (4.66″ × 4.66″ × 0.86″)
• InstallationWall mounting, base mounting
• LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
• PlatformHik-ProConnect and HikCentral Professional

• Function

• Face Anti-SpoofingSupport
