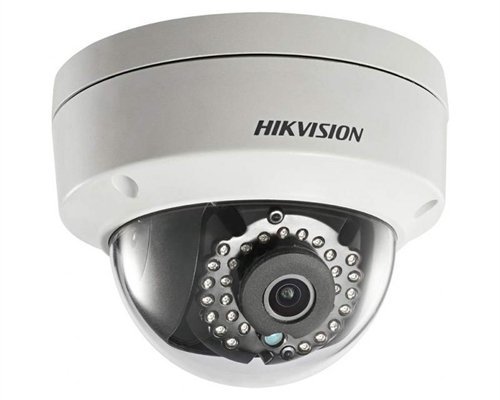

The DS-2CD1143G0-I camera is dedicated to IP CCTV systems. The ceiling camera has been equipped with 4 MP 1/3″ CMOS sensor providing good video coverage even in low-light conditions. Along with an IR illuminator with a range of up to 30 m, the camera can also operate in complete darkness. The built-in 2.8 mm lens has a 100° viewing angle. The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally from a 12 VDC source or with the use of the PoE option (802.3af).

Product Specifications

Name	HIKVISION DS-2CD1143G0-I
Code	K17266
Video system	IP
Housing type	Ceiling (dome)
Direction adjustment	2-axis
Image sensor	1/3″ Progressive Scan CMOS
Sensitivity	0.028 lx @ (F2.0, AGC ON), 0 lx in IR mode
Lens	2.8 mm @ F2.0 / 100o
Resolution	2560 x 1440 pixels
Frame rate	20 fps at 2560 x 1440, 25 fps at lower res.
Compression	H.265+/H.265/H.264+/H.264/MJPEG
Number of video streams	2
Bit rate range	32 kbps – 8 Mbps
IR range	Up to 30 m
Video processing	3D-DNR, DWDR, BLC
Mechanically switching IR filter	Yes
Gain	Automatic/Preset
Alarm events	Motion detection, video tampering
Intelligent image analysis	Not Implemented
Corridor mode	Yes
ROI	1 region
ANR	No
Recording	NAS (NFS/SMB/CIFS), FTP (screenshots)
Network interface	RJ-45 10/100Base-T
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards	ONVIF (S, G profiles), ISAPI
Housing material	Metal, plastics
IP and IK ratings	IP67, IK10
Power	12 VDC ± 25% PoE IEEE 802.3af
Power consumption	Max. 5 W
Operating temperature range	-30°C …+60°C
Dimensions	Φ111 × 82 mm
Weight	0.57 kg
