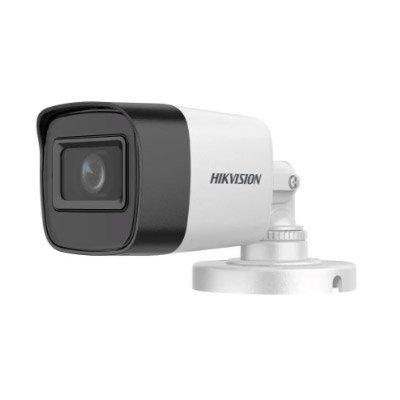

Hikvision DS-2CE16D0T-ITPF(C) 2 MP Fixed Mini Bullet Camera

Product Features

• 2 MP, 1920 × 1080 resolution
• 2.8 mm, 3.6 mm, 6 mm fixed lens
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• Smart IR, up to 25 m IR distance
• IP67

Product Specifications

Camera

• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) × 1080 (V)
• Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

Day &Night ICR

• Angle AdjustmentPan: 0° to 360°; Tilt: 0° to 90°; Rotate: 0° to 360°
• Signal SystemPAL/NTSC

• Lens
• Lens Type2.8 mm, 3.6 mm, 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101°, vertical FOV: 60°, diagonal FOV: 122°

  3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°

  6 mm, horizontal FOV: 51.9°°, vertical FOV: 30°, diagonal FOV: 58.8°

• Lens MountM12


• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate

  TVI: 1080P@30fps, 1080P@25fps

  CVI: 1080P@30fps, 1080P@25fps

  AHD: 1080P@30fps, 1080P@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceATW/MANUAL
• AGCSupport

Interface

• Video OutputSwitchable TVI/AHD/CVI/CVBS

General

• MaterialPlastic
• Dimension57.9 mm × 60.9 mm × 138.8 mm (2.28″ × 2.39″ × 5.47″)
• Approx. 141 g (0.31 lb.)
• Operating Condition-40° C to 60° C (-40° F to 140° F), Humidity 90% or less (no condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ± 25%
• Consumption

  Max. 2.2 W  DS-2CE16D0T-ITPF

• IR RangeUp to 25 m
