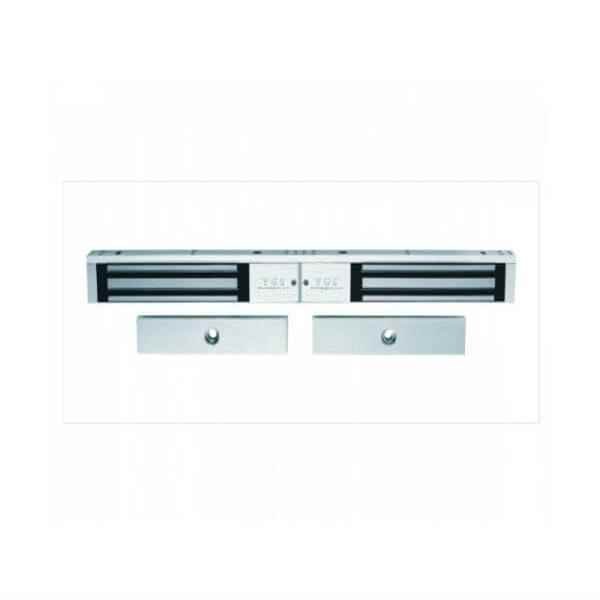

HIKVISION DS-K4H258D Two-Door Magnetic Lock

Product Features

• Value Series Magnetic Lock
• Magnetic lock supports static linear thrust of 280 kg (617 Lbs)
• Power supply can be 12VDC or 24VDC, (default voltage is 12VDC)
• Suitable for wooden doors, glass doors, metal door,s and fireproof door
• LED indicator displays door lock status
• Abrasion-proof materials

Product Specification

• General
• Indicator: Green (Work Status)
• Power Supply: 12 VDC, 340 mAx2
• Working Temperature: -10°C~+55°C (14°F~131°F)
• Working Humidity: 0~95% (Relative Humidity)
• Dimensions: Lock Body: 238 × 45 × 25 mm (9.4 × 1.8 × 1.0″), armature Plate: 182 × 38 × 12.5 mm (7.2 × 1.5 × 0.5)”
• Weight: 2.1 kg (4.6 Lbs)
• Material Shell: hard Anodizing Electroplating Operated, Lock Body: eco-friendly Nickel Electroplating Operated, Armature Plate: eco-friendly Zinc Electroplating Operated
• Thrust: Max. 280 kg (617 lb)
• Door Type: Single leaf, Double leaf, Wooden Door, Glass Door, Metal Door, Fireproof Door

• Magnetic Lock/General
• Unlock Method: Current Interruption
• Surface Temperature: ≤ Ambient Temperature +20°C (68°F)
