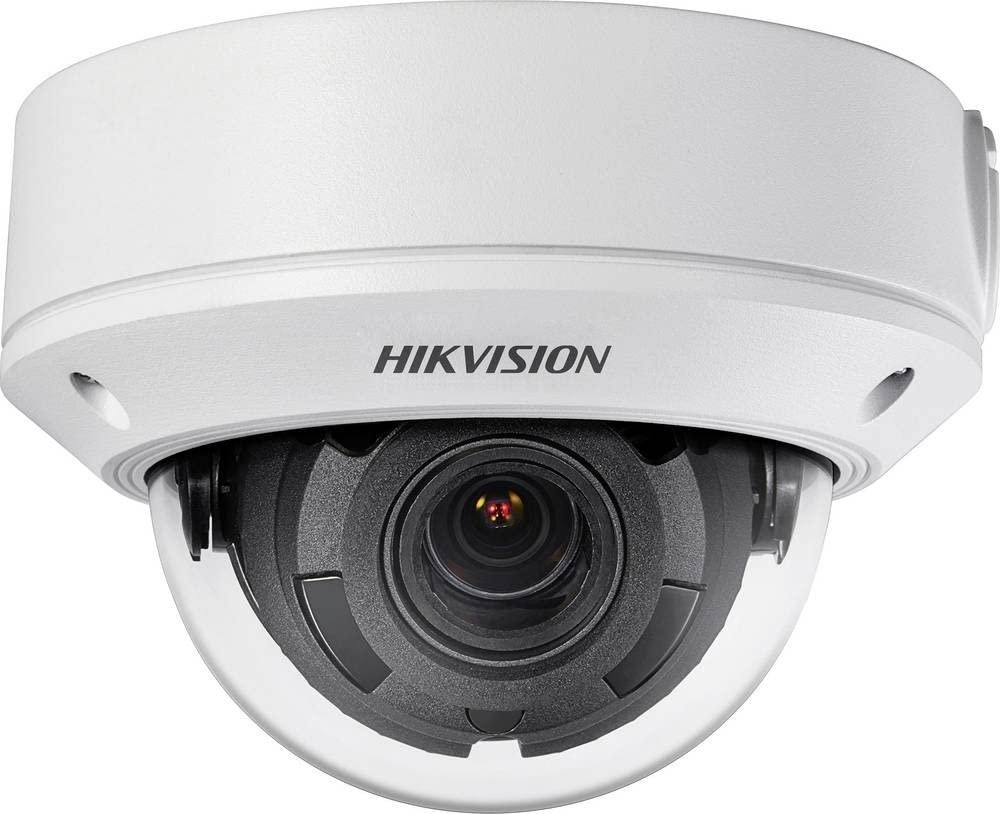

Hikvision DS-2CD1723G0-I camera is dedicated to professional IP CCTV systems. The ceiling camera has been equipped with high quality 2 MP 1/2.8″ CMOS sensor providing good video coverage even in low-light conditions. Along with an IR illuminator made in EXIR 2.0 technology, with a range of up to 30 m, the camera can also operate in complete darkness. The built-in 2.8-12 mm varifocal Motozoom lens allows for changing the viewing angle within the 98°-34° range. The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally from a 12 VDC source or with the use of the PoE option (802.3af).

Product Specifications

Name	HIKVISION DS-2CD1723G0-IZ
Code	K17432
Video system	IP
Housing type	Ceiling
Adjustment	3 axis
Image sensor	1/2.8″ Progressive Scan CMOS
Sensitivity	0.018 lx @ (F1.6, AGC ON), 0 lx in IR mode
Resolution	1920 x 1080 pixels
Frame rate	25 fps
Lens	2.8-12mm @ F1.6 (Motozoom) / 98o-34o
Compression	H.265/H.265+/H.264/H.264+/MJPEG
Number of video streams	2
Bit rate range	32 kbps – 8 Mbps
IR Range	up to 30 m (EXIR 2.0)
Video processing	3D-DNR, DWDR, BLC
Mechanically switching the IR filter	Yes
Gain	Automatic/Preset
Alarm events	Detection of motion, tampering; dynamic analysis
Intelligent image analysis	No
Corridor mode	No
ROIs	1 region
ANR	Yes
Recording	NAS (NFS/SMB/CIFS), FTP (screenshots)
Network interface	RJ-45 10/100Base-T
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards	ONVIF (S, G profiles), ISAPI
Housing material	Metal and plastics
IP and IK ratings	IP67, IK10
Power	12 VDC ± 25% PoE IEEE 802.3af
Power consumption	10 W (PoE: 12 W)
Operating temperature range	-30°C …+50°C
Dimensions	Φ141 × 99 mm
Weight	0.83 kg
