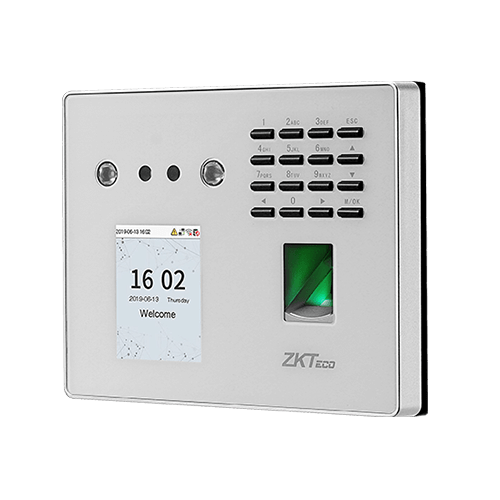

ZK Teco MB560-VL Face & Fingerprint Multibiometric T&A and Access Control Terminal

ZKteco MB560-VL is a multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Recognition technology. With the latest algorithm and facial recognition related technologies, the device can perform recognition of a target in a distance from 0.3m to 2m and will function automatically when it detects a face in the detection distance so as to deliver better recognition quality in terms of speed and accuracy than the previous near-infrared facial recognition terminal. With the applied Deep Learning algorithm, pose angle tolerance and anti-spoofing have been greatly enhanced against dynamic environment and various spoofing attacks. Apart from all these, together with the world’s cutting-edge 3D Neuron Fingerprint Algorithm and comprehensive support in mainstream card modules and additional support in Wi-Fi, MB560-VL must be a best fit in various working environments satisfying different customer’s needs.

Product Features

• Visible Light Facial Recognition
• 2 meters of recognition distance and extra wide angle recognition
• Anti-spoofing algorithm against print attack (laser, color and B/W photos), videos attack and 3D mask attack
• Multiple verification methods: Face / Fingerprint / Card (optional) / Password
• Supplement lighting with adjustable brightness

Product Specification

• Display 2.8-inch TFT Screen
• Face Capacity 3,000
• Fingerprint Capacity 3,000
• Card Capacity 10,000 (Optional)
• Transactions 100,000
• Communication TCP/IP, WiFi (Optional), USB Host
• Standard Functions ADMS, Work Code, DST, Self-service Query, Automatic Status Switch, T9 Input, Camera, 9-digit User ID, Multiple Verify Modes, Schedule Bell
• Hardware 900MHz Dual Core CPU; Memory 512MB RAM / 8G ROM; 2MP WDR Low Light Camera; Adjustable LED Supplement Lighting
• Operation System Linux
• Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button
• Optional Functions 125KHz ID Card (EM) / 13.56MHz IC Card (MF)
• Biometrics Algorithms ZKFace V5.8 & ZKFinger V10.0
• Power Supply 12V 1.5A
• Working Humidity 20% – 80%
• Working Temperature 0C – 45C
• Dimensions (W*H*D) 170 * 138 * 38.55 (mm)
• Supported Software BioTime8.0
