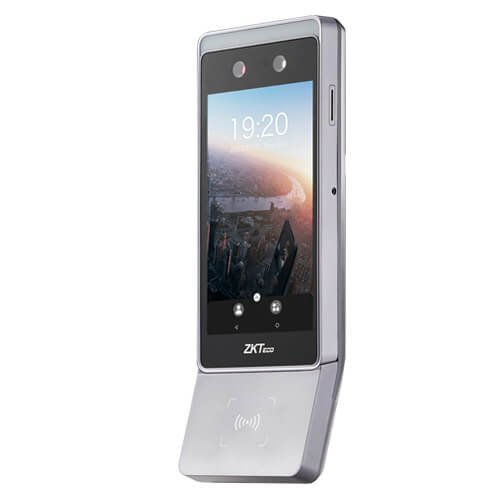

Horus is one of the most advanced Access Control & time and attendance terminal in the market, with incredibly compact size and powerful facial recognition technology offering up to 3 meters recognition distance, ±30 degree pose angle tolerance, high anti-spoof ability, support on plentiful communication protocols (Wi-Fi, 3G, 4G, Bluetooth) and worldwide network setting, RFID card module, up to 10,000 facial templates capacity, and is compatible with the all-in-one security & time attendance platform ZKBioSecurity and BioTime.

The trend of Visible Light Facial Recognition technology have brought user experience of biometric technology to a new height. As one of the biometric industry leaders, ZKTeco launched the second-generation facial recognition terminal–Horus series, named after an Egyptian god, who has the legendary “all-seeing eye” that can clearly observe everything.

Product Features

• up to 3 meters recognition distance;
• ±30 degree pose angle tolerance;
• high anti-spoof ability;
• support on plentiful communication protocols (Wi-Fi, 3G, 4G, Bluetooth) and worldwide network setting;
• RFID card module;
• up to 10,000 facial templates capacity;
• compatible with the all-in-one security & time attendance platform ZKBioSecurity and BioTime.

Product Specifications

• CPUQuad-core, 1.5GHz
• Android VersionAndroid 8.1
• MemoryRAM 2GB / ROM 16GB
• Camera2MP Dual Camera
• LCD720 * 1280, IPS touch LCD
• Verification ModeHorus E1: Face
• Horus E1-RFID: Face + RFID
• Horus E1-FP: Face + Fingerprint + RFID
• Face Capacity6,000 / 10,000 (Optional)
• Fingerprint CapacityHorus E1: N / A
• Horus E1-RFID: N / A
• Horus E1-FP: 6,000 / 10,000 (Optional)
• ID CardHorus E1: N / A
• Horus E1-RFID: IC & Desfire Optional
• Horus E1-FP : IC & Desfire Optional
• TCP/IPHorus E1: N / A
• Horus E1-RFID: 10 / 100 Mbps
• Horus E1-FP: 10 / 100 Mbps
• Wi-Fi2.4GHz, 5GHz, 802.11a / b / g / n
• 4G Wireless BroadbandGSM: 850 / 900 / 1800 / 1900
• WCDMA: 850 / 900 / 1700 / 1900 / 2100
• TDD-LTE: B38 / B40 / B41M
• FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B’
• USBHorus E1: USB 2.0 (upto 16G USB Disk)
• Horus E1-RFID: USB 2.0 (upto 16G USB Disk)
• Horus E1-FP: N / A
• GPSGPS / A-GPS
• Speaker90DB (10cm distance)
• Microphone1m clear voice pickup
• DimensionHorus E1: 158 * 74 * 15.6mm
• Horus E1-RFID: 205.33 * 74 * 17.7 mm
• Horus E1-FP: 205.33 * 74 * 17.7 mm
• Power Supply12V 2A
• Operating Temperature-10°C – 50°C
• Operating Humidity20% – 80%RH
• CertificationsCE, FCC, RoHS
