Sale!

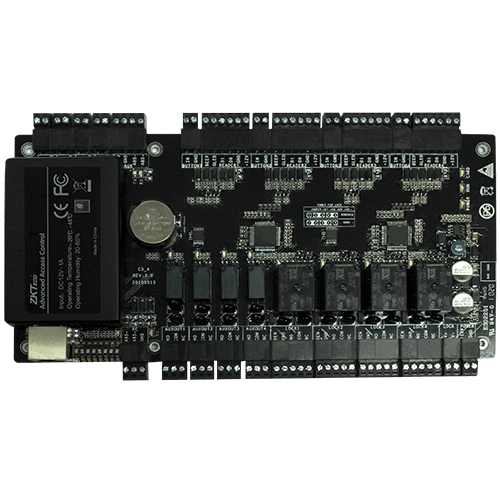

ZKTeco C3-400 Package B (RFID Access Controller, Access with EM/Mifare Card)

Original price was: KSh 45,000.00.Current price is: KSh 30,000.00. Ex.VAT

RFID Access Controller
Management of 4 doors
Capacity 30.000 users and 100.000 records
Supports up to 4 Wiegand readers or RS485
TCP/IP communication and RS485
Input of 4 pushbuttons, 4 door sensors and 4 auxiliary inputs
4 Relay outputs and 4 auxiliary
Relay configuration NO/NC
Compatible with ZK Access software 3.5 for access control and reporting management

ZK Teco C3-400 Package B (RFID Access Controller, Access with EM/Mifare Card)

Description	C3-100	C3-200	C3-400
Number of Doors Controlled	1 Door	2 Door	4 Door
Number of Readers Supported	2	4	4
Types of Readers Supported	26-bit Wiegand, others upon request	26-bit Wiegand, others upon request	26-bit Wiegand, others upon request
Number of Inputs	2 (Exit Device and Door Status)	6 (2 Exit Device, 2 Door Status, 2 AUX)	12 (4 Exit Device, 4 Door Status, 4 AUX)
Number of Outputs	2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)	4 (2-From C Relay for Lock and 2-Form C Relay for Aux Output)	8 (4-Form C Relay for Lock and 4-Form C Relay for Aux Output)
Card Holders Capacity	30,000	30,000	30,000
Log Events Capacity	100,000	100,000	100,000
Weight	7.4lbs (3.35kg)	7.5lbs (3.4kg)	7.8lbs (3.55kg)
Communication	TCP/IP, RS-485 and WiFi optional	TCP/IP, RS-485 and WiFi optional	TCP/IP, RS-485 and WiFi optional
Enclosure	Powder Coated Aluminium	Powder Coated Aluminium	Powder Coated Aluminium
Mounting	Wall Mount	Wall Mount	Wall Mount
Recommended Power Supply	12V DC, 1.5A	12V DC, 1.5A	12V DC, 1.5A
Dimensions (Bundle Only)	15in.×3.15in.×11in.	15in.×3.15in.×11in.	15in.×3.15in.×11in.
	380mm(L) X 80mm(W) X 280mm(H)	380mm(L)×80mm(W)×280mm(H)	380mm(L)×80mm(W)×280mm(H)
Dimensions ( Board Only)	6.3in.×4.17in. (160mm×106mm)	6.3in.×4.17in. (160mm×106mm)	8.58in.×4.17in. (218mm×106mm)
